Centrifugal pump with cutter 1.5 kW
½” (DN40) self-priming centrifugal pump with cutter device and 1,5 kW 400 V motor, suitable for 50 and 60 Hz.
VICTOR PUMPS P/N S40GC31T156

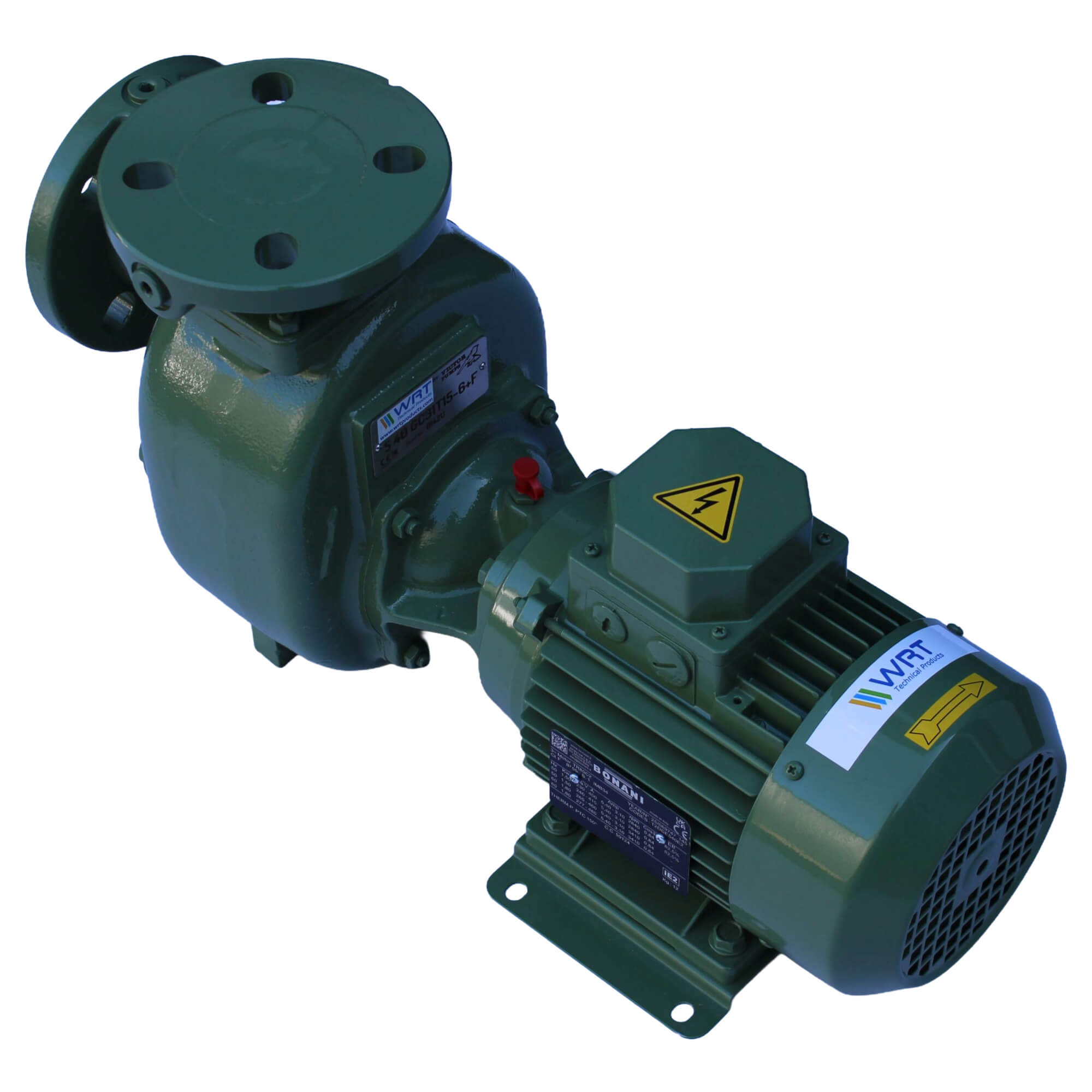

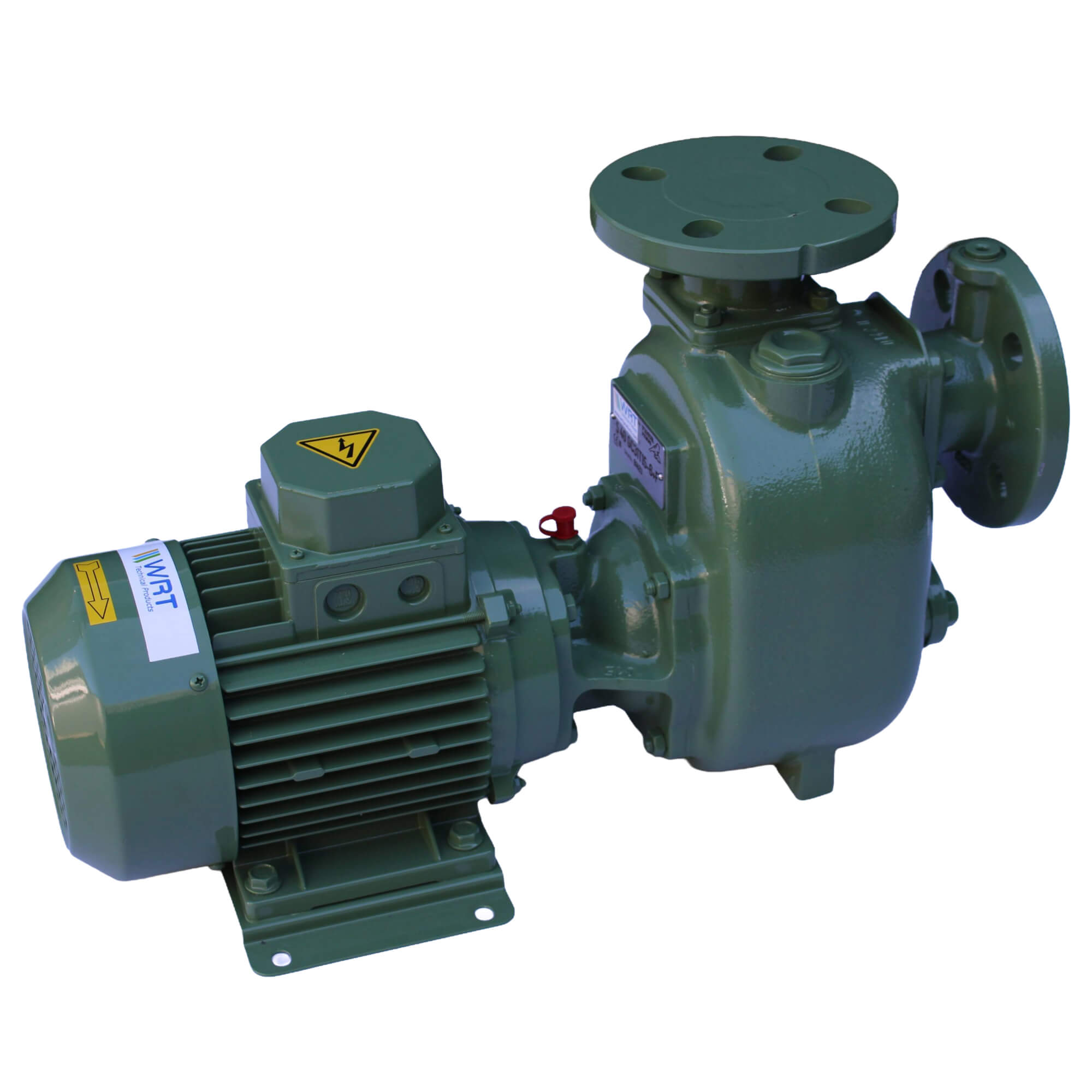

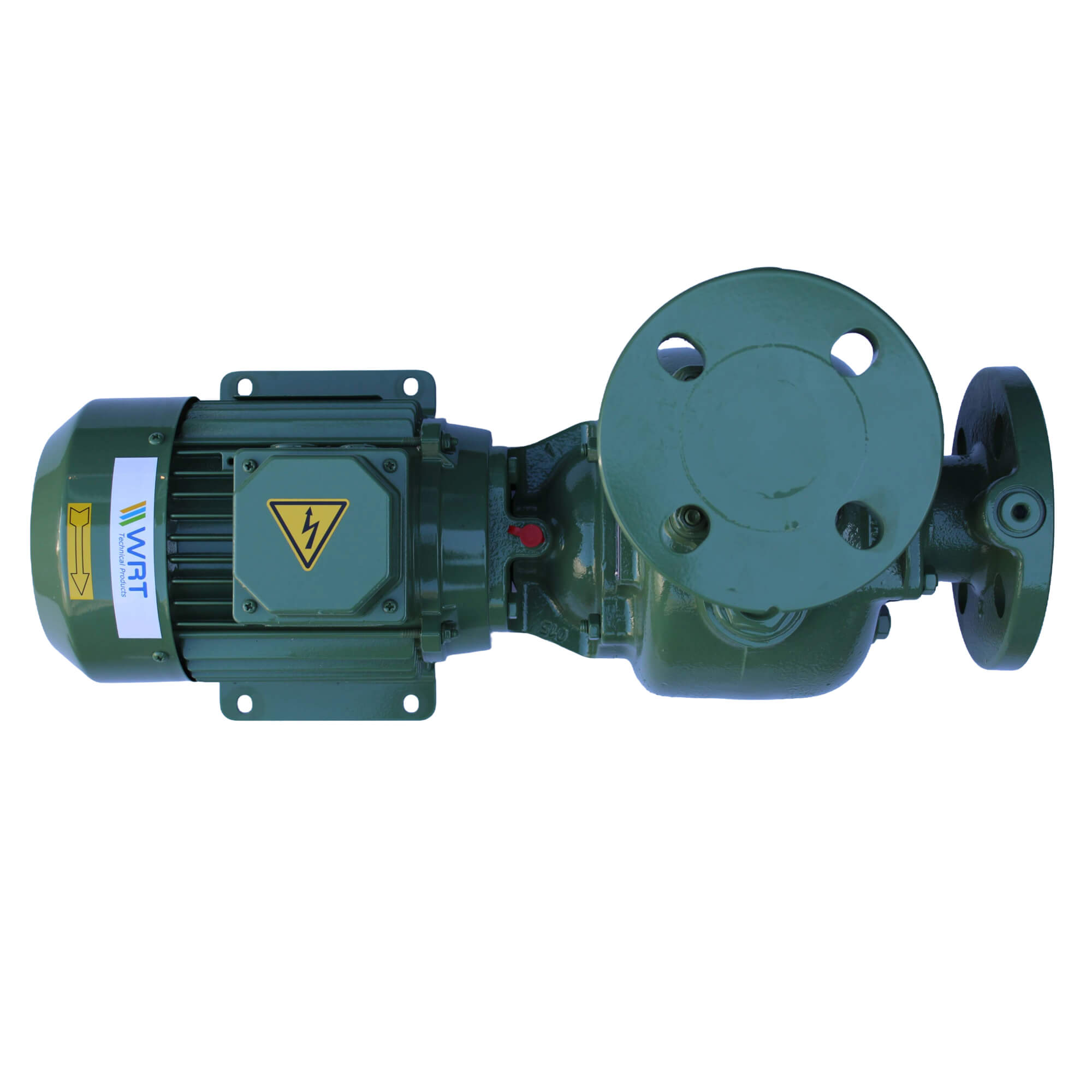

The Victor Pumps S 40 GC31T15-6+F is a heavy-duty self-priming centrifugal pump for transferring wastewater with solids in suspension, on board ships and in onshore installations.
Also commonly referred to as a sewage pump, grinder pump or cutter pump in shipboard installations, it combines a cast iron pump body with an integrated cutter device. The cutter breaks up solids up to 20 mm before they enter the impeller, which prevents clogging.
The pump is close-coupled to a 1,5 kW three-phase motor on a single shaft, so no separate coupling is needed. The built-in non-return valve and the self-priming design keep the pump primed between cycles. The impeller can be inspected through the inspection cover without disconnecting any piping.
Key features:
- Self-priming centrifugal pump with integrated cutter device
- Max. flow rate 22 m³/h (360 l/min), max. head 15 m (50 Hz)
- Handles solids up to 20 mm
- Suction lift up to 8 m with water
- Connections DN40 x DN40
- Built-in NBR non-return valve
- Grease-lubricated mechanical seal in SiC/SiO₂/FKM on a stainless steel sleeve
- Stainless steel AISI 316 shaft
- Inspection cover for easy access to the impeller
- Suitable for both 50 Hz and 60 Hz operation
Technical information
Technical specifications:
| Specification | Value |
|---|---|
| Pump type | Self-priming centrifugal pump (wet-prime) |
| Construction | Close-coupled, single shaft, horizontal |
| Connections | DN40 x DN40 |
| Max. flow rate | 22 m³/h (360 l/min) |
| Max. head (50 Hz) | 15 m |
| Max. solids size | 20 mm |
| Max. suction lift | 8 m with water (9,5 m for 10 min), 6 m with air |
| Casing / impeller | Cast iron |
| Wear plate | Steel |
| Shaft | Stainless steel AISI 316 |
| Shaft seal | YCV mechanical seal, grease-lubricated, SiC/SiO₂/FKM (Viton®) |
| Non-return valve | NBR (nitrile) |
| Motor | Three-phase, 1,5 kW (2 HP), IE2 |
| Voltage | 400 V ±10% @ 50 Hz |
| Speed | 2900 rpm (50 Hz) |
| Protection / insulation | IP55 / class F |
| Cooling | IC411 – TEFC |
| Max. liquid temperature | 60 °C |
| Max. ambient temperature | 40 °C |
| Max. density / viscosity | 1,4 kg/dm³ / 30 cSt |
| Typical application | Wastewater with solids in suspension, non-corrosive |
