Floor toilet push button
Roediger P/N 330030000
Availability: In Stock - Send by 10/03/2026
€245.00 excl. VAT

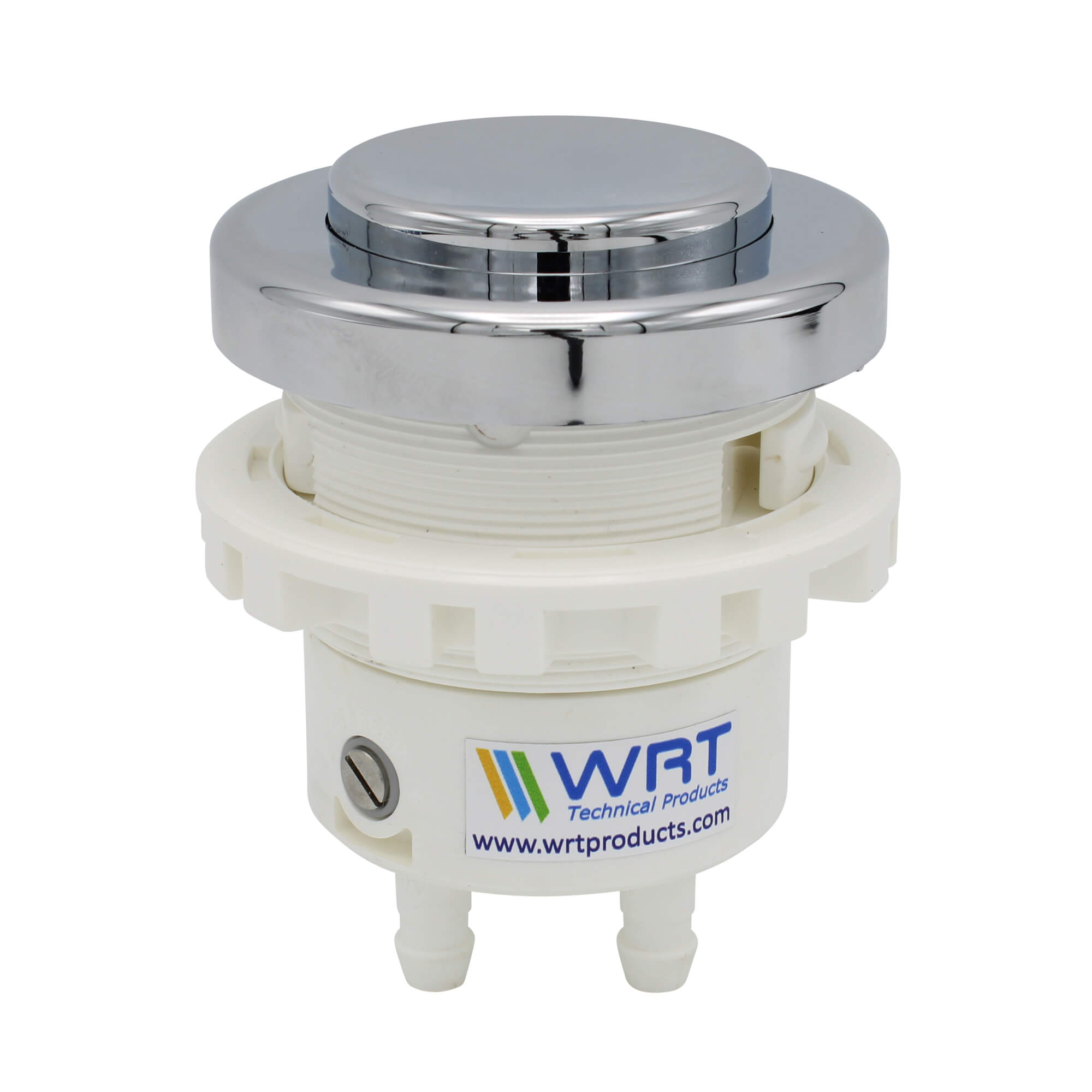

The Roediger toilet push button control (part no. 330030000) is a chrome-plated control unit for operating vacuum toilets.
This particular push button is usually placed directly on a floor-mounted toilet bowl.
This push button acts as the trigger for flushing, controlling both the water valve (the rinse water) and the evacuation (vacuum) valve to ensure a reliable and hygienic flush cycle.

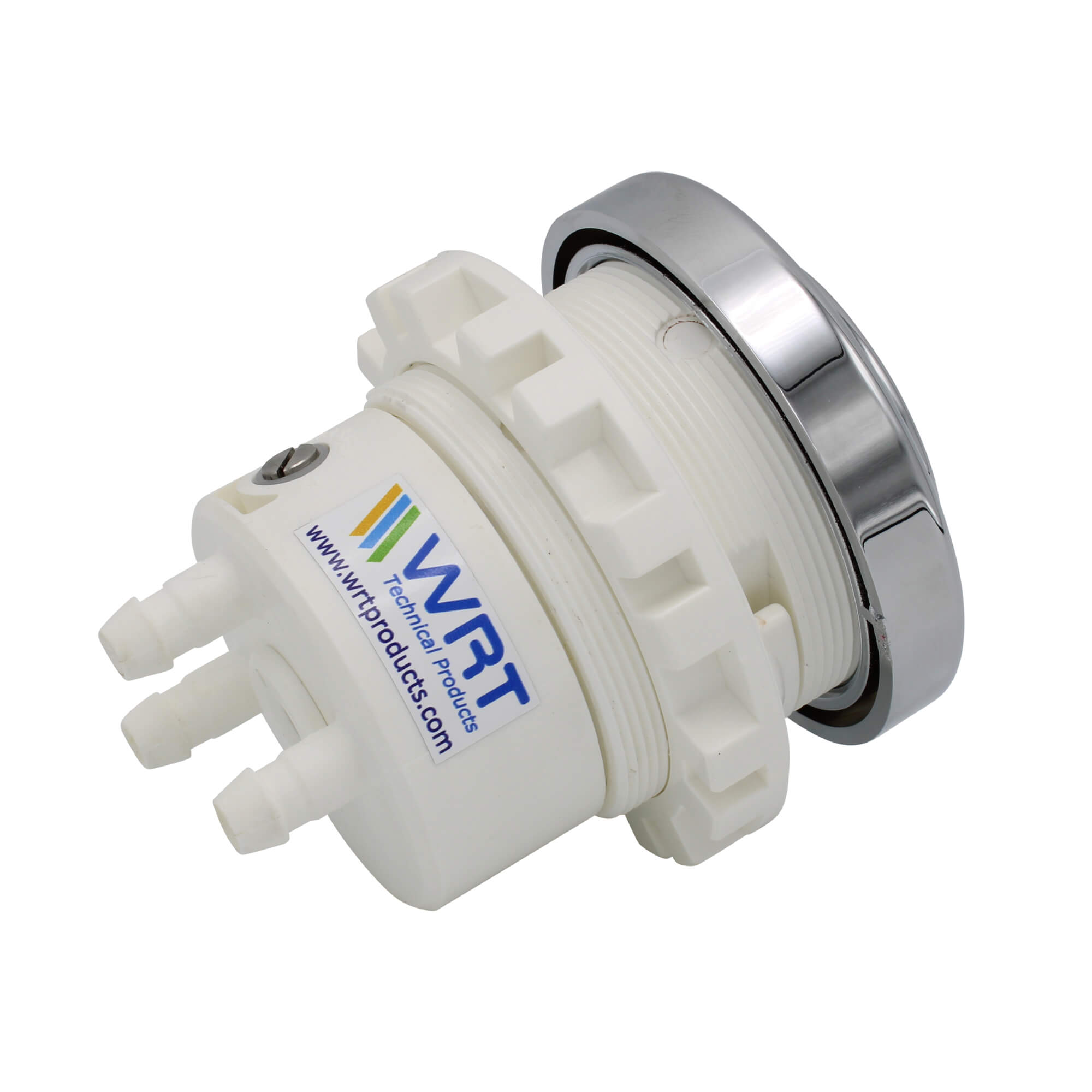

The unit is equipped with three hose nozzles (8 mm) for connection to the vacuum line, water valve, and evacuation valve.
Using the integrated adjustment screws, you can set both the amount of flush water and the valve opening time to suit the specific installation and system parameters.
The push button is supplied with a chrome rosette and retaining nut for secure and visually appealing installation.
Key features:
- Chrome-plated toilet push button
- 3x 8 mm hose connections (vacuum line, water valve, evacuation valve)
- Adjustable flushing water quantity and valve opening time via setting screws
- Includes chrome rosette and nut
- Designed for use with Roediger vacuum toilet systems
You may also consider our Wall toilet push button.
For questions about installation or compatibility, please contact our technical support team.
Additional information
By pressing the push button control, the flushing process is initiated, and vacuum is transmitted to both the evacuation valve and the water valve. After the flushing time, set by adjusting the screw at the bottom of the push button, has elapsed, the evacuation valve closes. The water valve then closes after a delay time, which can be adjusted using the screw on the front side of the push button. The rinsing process is thus completed, and the toilet bowl is once again provided with a water seal.
The push button has 3 connections:
- ‘U’ connects to the vacuum buffer non-return valve, to decrease the control vacuum.
- ‘AV’ connects to the evacuation valve, to open the valve and empty the toilet bowl.
- ‘WV’ connects to the water valve, to open the valve and rinse the toilet.
