MDQ 08-II Dosing Unit
The MDQ 08-II is a compact, automatic dosing unit that keeps vacuum sewage lines free of blockages. At set intervals, its timer opens a solenoid valve.
The system vacuum then draws a small amount of cleaning fluid from a jerry can into the vacuum main line.
This prevents organic and inorganic deposits, such as scale and urine stone, from building up in the piping.
Key features
- Fully automatic dosing, driven by the vacuum itself with no pump required
- Factory setting: 1 second open every 90 minutes, about 500 ml per day
- Adjustable digital timer, from 10 ms up to 99 hours, with a test button
- Available for 1 x 230 V 50/60 Hz or 1 x 115 V 60 Hz
- Simple installation on a vertical section of the vacuum main line via a ¼” connection
- Designed for use with Vacuclean Strong or Vacuclean Light cleaning fluid
Scope of delivery

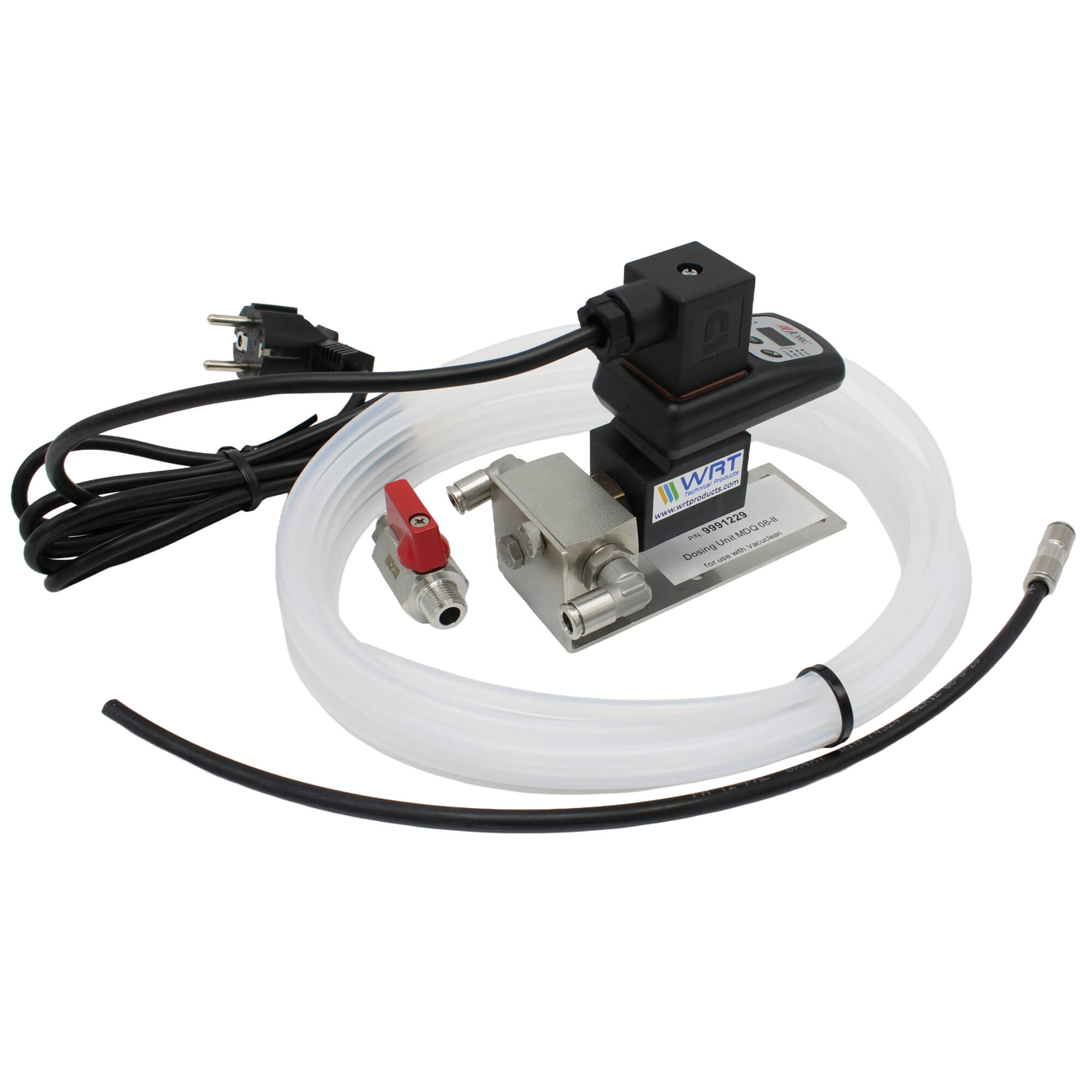

Control unit with solenoid valve (¼” / 6 mm), 6 m suction hose, 6 x 6 mm coupling, 6 mm rigid hose (L = 350 mm) and user manual.
