Temperature sensor 6.5m

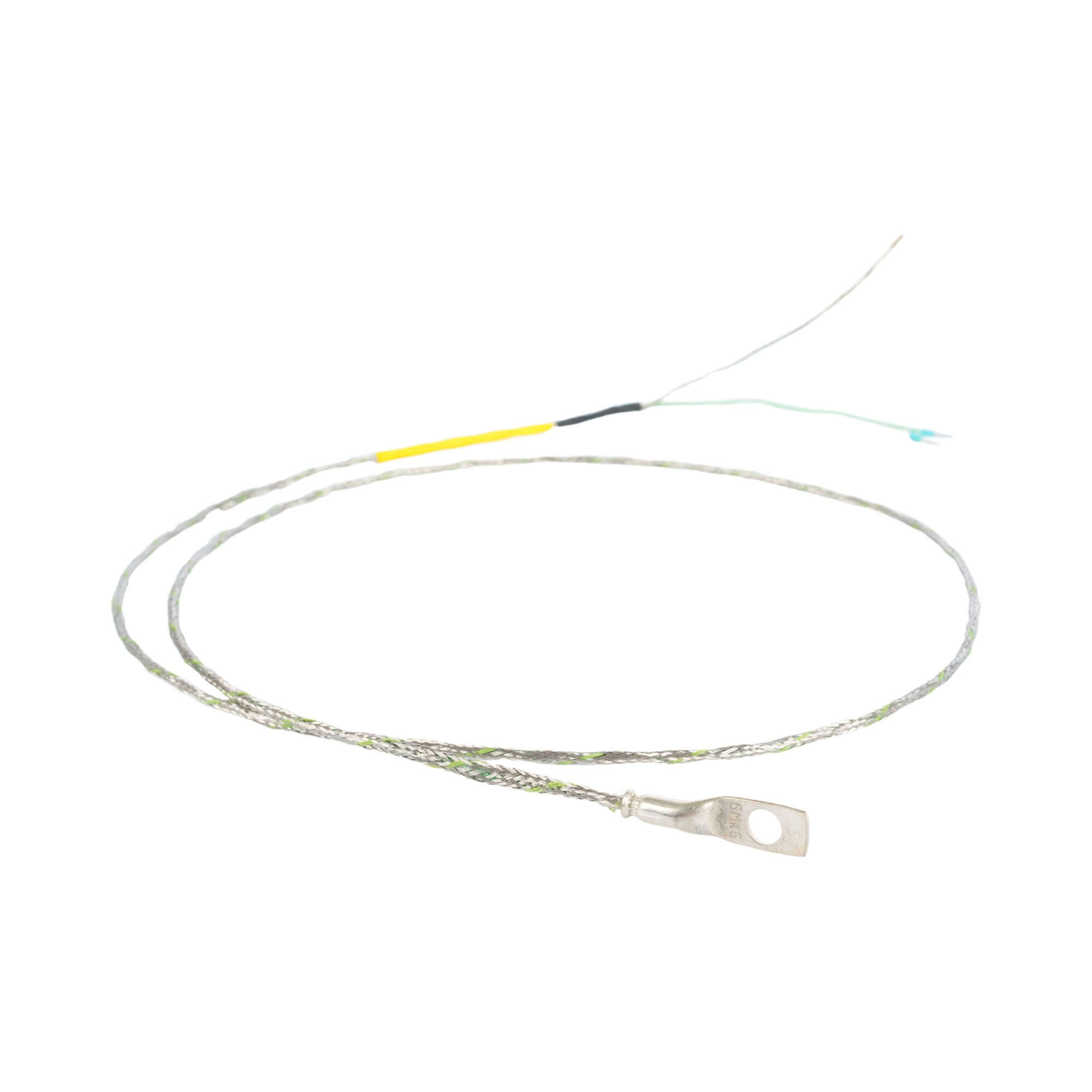

The temperature sensor (part no. 322302) measures the temperature by a thermocouple mounted on the outside of the reactor chamber.
By applying a temperature protection, it is possible to protect the UV-C lamp against overheating.

If the measured temperature is above the pre-alarm value, only a message will be generated.
As soon as the main alarm value is exceeded, the UV-C lamp will be switched off preventively.

Default settings:

• Pre-alarm ≥ 30 degrees
• Main alarm ≥ 35 degrees

The above settings are adjustable.

Length: 6.5 meter

In addition to using the temperature sensor, a temperature dump valve can be used.
This valves cools down the UV lamp when the pre set alarm values are reached.
